Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine

    Buy cheap Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine from wholesalers

    Buy cheap Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine from wholesalers
    • Buy cheap Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine from wholesalers

    Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine

    Ask Lasest Price
    Brand Name : Rich Packing
    Model Number : DPP-80
    Certification : CE ISO SGS
    Price : $4200-5350/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 pcs/month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine

    Small Alu Alu Pill Blister Packing Machine For Pharmaceutical Use


    Brief introduction

    This bliste packing machine is newly developed and innovated by Guangdong Rich Packing Machinery Co. Ltd. , and the blister pack machinery technology is advanced in China by now. This packaging machine is widely used for the aluminum-plastic/ paper-plastic/ aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc.


    ModelDPP-80
    Blanking10~40 times/min
    Production Capacity2400 plates/h
    Max. Shaping Dia. And Depth70*110*15mm Max. Depth 25mm(custom-made)
    Standard Travel Range30~80mm
    Standard Plate80*57mm
    Power of Main Motor0.75kW
    Total Power2.4kW
    Power380V/220V/50Hz
    Vacuum0.4MPa-0.6MPa
    Noise<75dBA
    Thickness and Width of PVC0.15~0.5*120mm
    Thickness and Width of PTP0.02~0.035*120mm
    Dialyzing Paper50~100g*120mm
    Mold CoolingRunning water or circulating water
    WeightNet weight 415 kg ;Gross weight465 kg
    Overall Size of Machine1830*580*1050 mm
    Packing Size1600*750*1200mm

    Proximity switch: Molding, traction, positioning module using proximity switch control instead of pneumatic control, higher accuracy, longer service life.

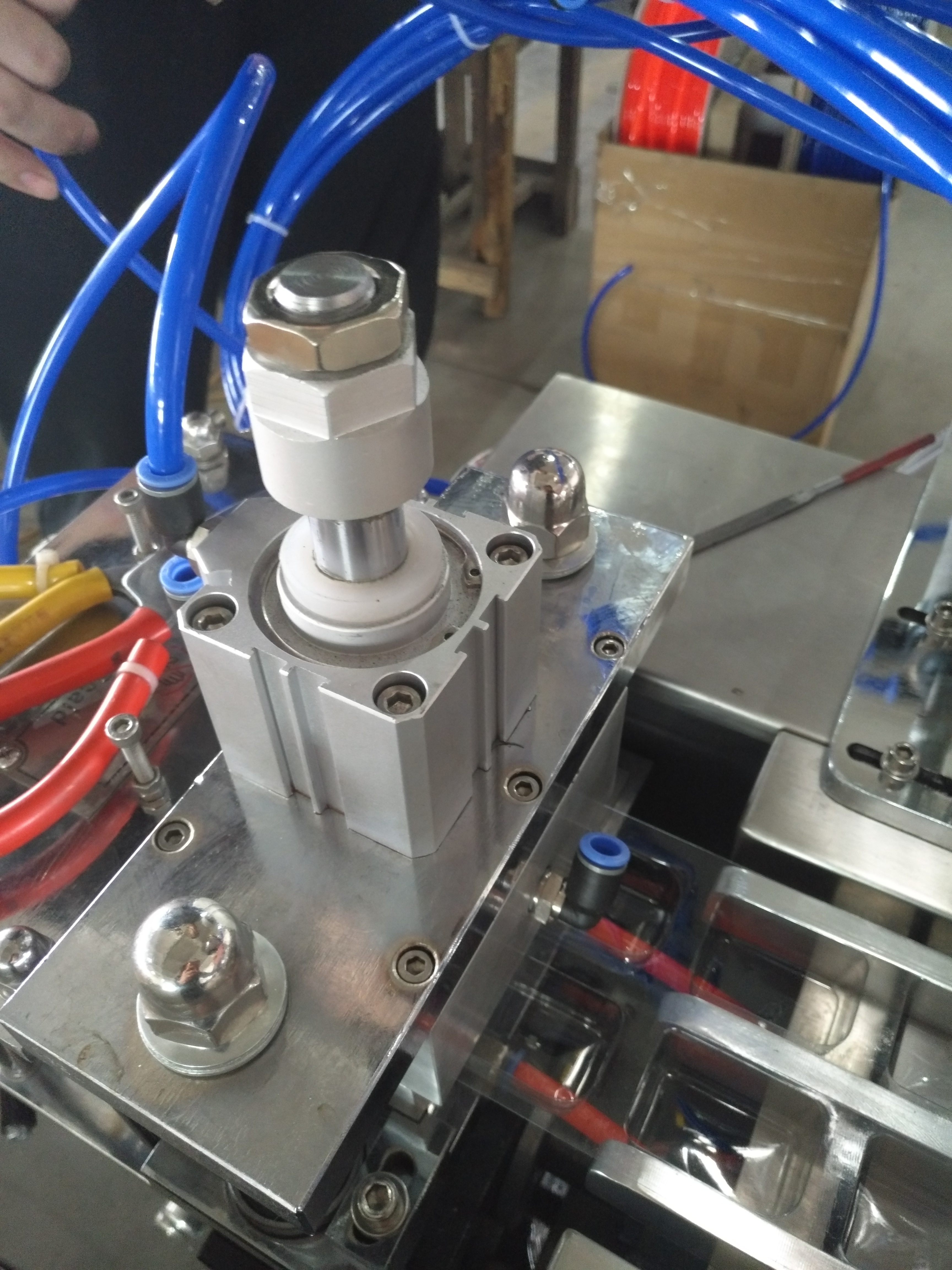

    Forming device: Accurate positioning of mould, uniform size distribution of molding module, symmetry and accuracy


    Features of capsule blister packing machine:

    1. The travel scope is adjustable, and the mold is located in the groove for easy mold changing.
    2. Automatic feeding system of pharmacy blister pack machinery, and the mold and feeder can be designed based on different products.
    3. The automatic blister packing machine can use easy tearing line pressing device, batch printing device and waste collecting device.

    4.The automatic alu/ pvc blister packing machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
    5.This blister packing machine has 12 months warranty and technical support is available .
    6.Any alu/pvc blister packing machine of Guangdong Rich Packing Machinery Co. Ltd. could be customized depend on your product.
