1830*580*1050 Mm Blister Packing Machine For Small Scale Pharmaceutical Industry

    Buy cheap 1830*580*1050 Mm Blister Packing Machine For Small Scale Pharmaceutical Industry from wholesalers

    Buy cheap 1830*580*1050 Mm Blister Packing Machine For Small Scale Pharmaceutical Industry from wholesalers
    • Buy cheap 1830*580*1050 Mm Blister Packing Machine For Small Scale Pharmaceutical Industry from wholesalers

    1830*580*1050 Mm Blister Packing Machine For Small Scale Pharmaceutical Industry

    Ask Lasest Price
    Brand Name : Rich Packing
    Model Number : DPP-80
    Certification : CE ISO SGS
    Price : $4200-5350/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 pcs/month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

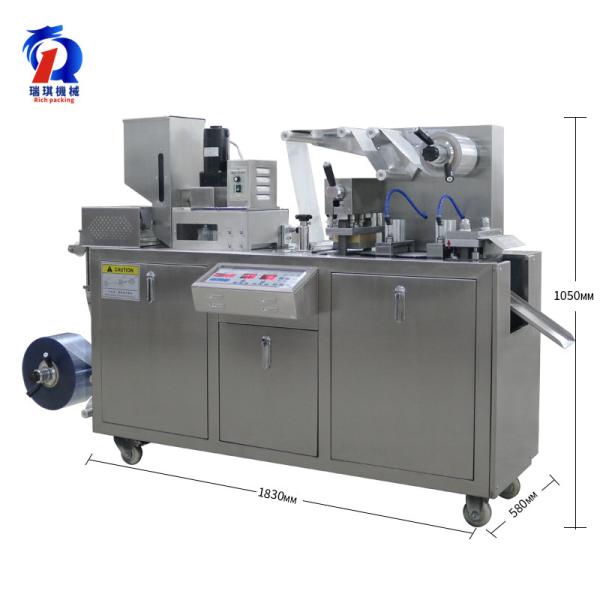

    1830*580*1050 Mm Blister Packing Machine For Small Scale Pharmaceutical Industry

    DDP80 Small Aluminum Plastic Tablet Blister Packing Machine / Capsule Blister Packing Machine


    Brief introduction

    Small capsule blister packaging machine dedicated to small-scale pharmaceutical industry and hospitals. The blister packing machine adopts microcomputer control system, frequency conversion speed regulation, and the automatic capsule blister packaging machnery suitable for ALU PVC, ALU ALU, PVC PAPER material packaging. The blister pack machine meet the GMP standard, easy to operate.


    ModelDPP-80
    Blanking10~40 times/min
    Production Capacity2400 plates/h
    Max. Shaping Dia. And Depth70*110*15mm Max. Depth 25mm(custom-made)
    Standard Travel Range30~80mm
    Standard Plate80*57mm
    Power of Main Motor0.75kW
    Total Power2.4kW
    Power380V/220V/50Hz
    Vacuum0.4MPa-0.6MPa
    Noise<75dBA
    Thickness and Width of PVC0.15~0.5*120mm
    Thickness and Width of PTP0.02~0.035*120mm
    Dialyzing Paper50~100g*120mm
    Mold CoolingRunning water or circulating water
    WeightNet weight 415 kg ;Gross weight465 kg
    Overall Size of Machine1830*580*1050 mm
    Packing Size1600*750*1200mm

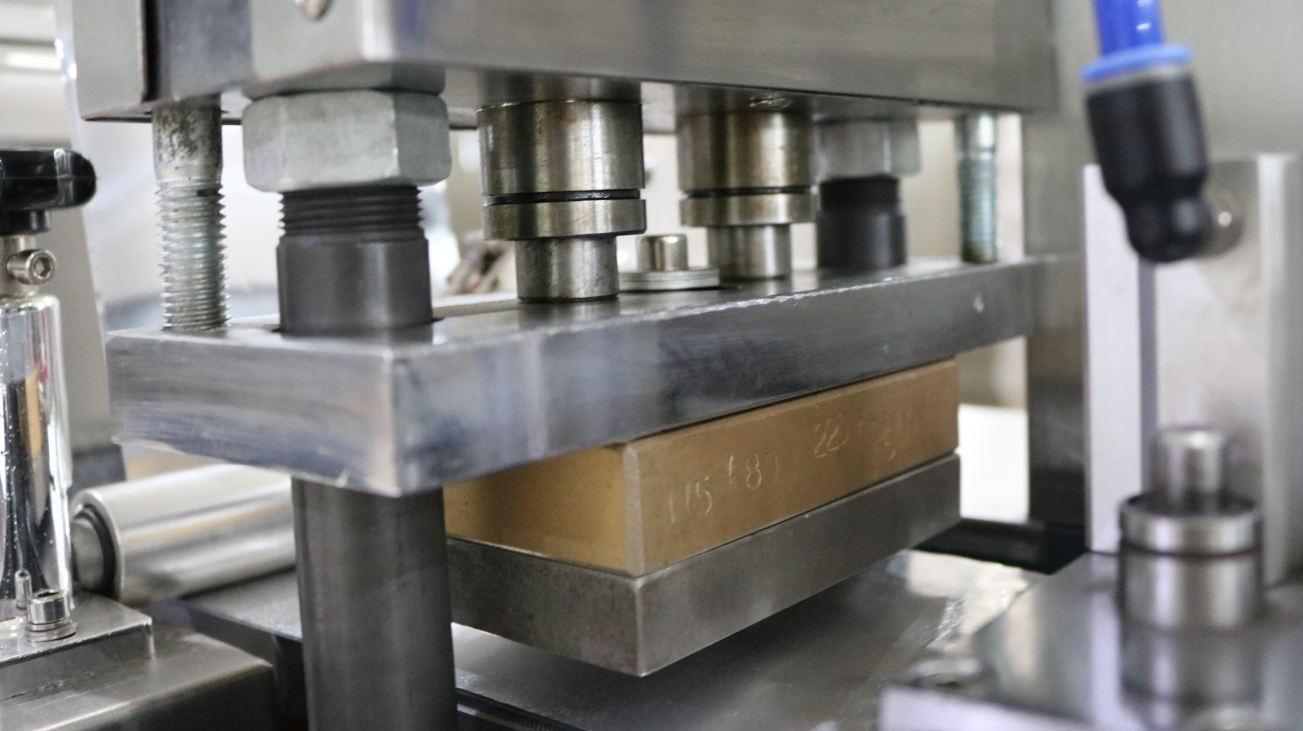

    Heat sealing device: With high temperature sealing, the heat is adjustable, the distribution is uniform, the adhesive is strong, no wrinkle, the heat seal position cylinder is driven, the operation is accurate and convenient

    Traction and positioning device:Cylinder traction positioning system with accurate stroke and accuracy of -0.1mm


    1.Guangdong Rich Packing Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical and packing machinery and equipment in China.?
    We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute.
    2.With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including? tablet press, soft and hard blister packing machine, capsule filling machines, counting machine and cartoning box machine, etc.

    3.Due to our good credit and service, we have made great achievements in the past years.?
    We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
    4.Our tablet press machine, capsule filling machine, blister pakcing machine, tablet and capsule counting filling machine, cartoning box machine are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, Guangdong Rich Packing Machinery Co. Ltd. also supply production lines
    5.In Rich Packing you can get your desired goods with the best prices and good quality. Welcome your inquiries from all over the world.
