    High Speed Blister Packing Machine With Micro Computer Control System

    Ask Lasest Price
    Brand Name : Rich Packing
    Model Number : DPP-80
    Certification : CE ISO SGS
    Price : $4200-5350/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 pcs/month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

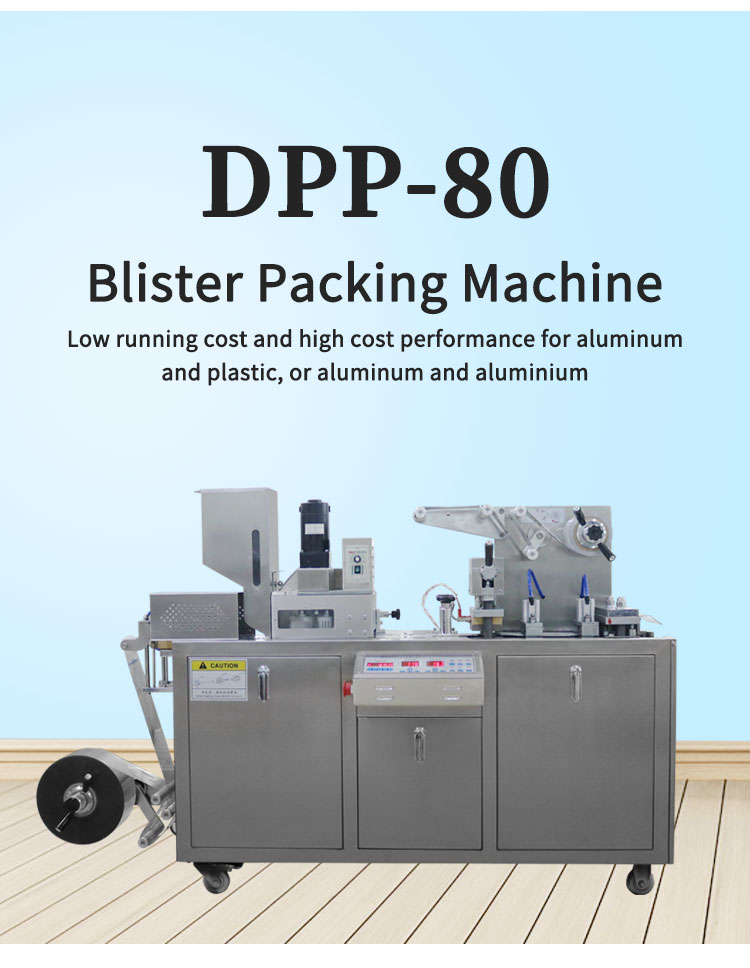

    High Speed Blister Packing Machine With Micro Computer Control System

    Capsule Tablets Tablet Aluminum-Plastic Packaging Small Alu Blister Packing Machine


    Introduction of capsule blister packing machine:

    The small capsule blister packing machine is special for small pharmaceutical industry and hospital. The blister packing machine adopted micro computer control system, frequency speed changing which is suitable to pack ALU PVC, ALU ALU, PVC PAPER material packaging. The blister packaging machine meet GMP standard and easy to operate.


    ModelDPP-80
    Blanking10~40 times/min
    Production Capacity2400 plates/h
    Max. Shaping Dia. And Depth70*110*15mm Max. Depth 25mm(custom-made)
    Standard Travel Range30~80mm
    Standard Plate80*57mm
    Power of Main Motor0.75kW
    Total Power2.4kW
    Power380V/220V/50Hz
    Vacuum0.4MPa-0.6MPa
    Noise<75dBA
    Thickness and Width of PVC0.15~0.5*120mm
    Thickness and Width of PTP0.02~0.035*120mm
    Dialyzing Paper50~100g*120mm
    Mold CoolingRunning water or circulating water
    WeightNet weight 415 kg ;Gross weight465 kg
    Overall Size of Machine1830*580*1050 mm
    Packing Size1600*750*1200mm

    Capsule sample of blister pakaging machine, the blister packing machine could suitable for capsules, tablets, honey pills, candies, disposable syringes or irregular products


    Features of automatic capsule blister packing machine

    1.This blister packing machine is widely used for the aluminum-plastic / paper-plastic / aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc.

    2.With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and the blister packaging machine is specially used for the packing of big honey pill or medical machinery, etc
    3.The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and the alu/ pvc automatic blister packing machine is convenient to change dies.

    4.Adopt the imported high precision CNC machine tool to produce the mould,make sure the blister packaging machine is precision and quality.
    5.The blister packing machine applicable to the pharmaceutical, food, health care products packaging industry plain tablets, sugar coated tablets, capsules, can be packaged tomato sauce, chocolate sauce, honey and so on
