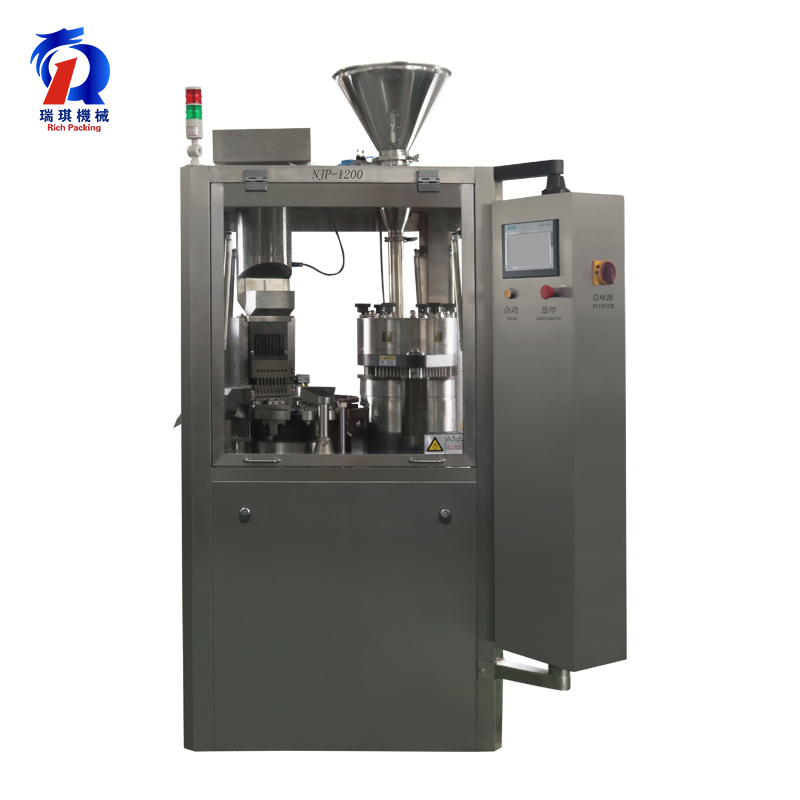

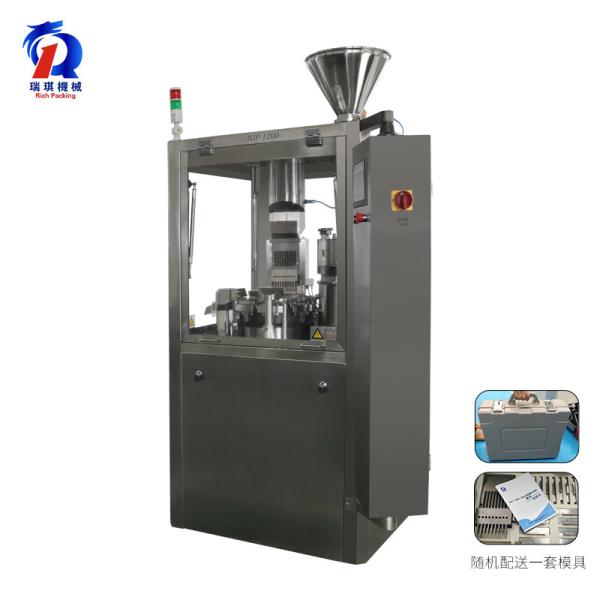

NJP 1200 Automatic Control Capsule Filling Machine Manufacturer
Introduction of capsule filling machine:
The filling speed of the capsule filling machine is fast, and the
difference of the size of the capsule filling machine is small. The
filling of the capsule shell, the capsule cap finishing, and the
capsule set are integrated, which is compact and convenient. In
addition, the capsule filling machine has many advantages such as
high speed, high efficiency, simple operation, convenient
maintenance and low power consumption. It is the preferred capsule
filling (filling) machine for pharmaceutical factories, health care
products factories and hospital preparation rooms.
Features of capsule filling machine:
1.This pharmaceutiacl automatic capsule filling meets the GMP
requirements, it is an ideal equipment for filling Chinese, Western
medicines and health care product .
2.This automatic capsule fill machines can automatically finish the
production process including sowing, capsule separating, filling,
locking, unqualified capsule rejected and finished products output.
3.This pharmaceutical capsule filling machine has safety firs, all
the working stations take full account of the personal safety, such
as the door control and emergency stop switch.
4. Guangdong Rich Packing Machinery Co. Ltd.'s capsule filler
machine deploy segmentation adapt German Cai Si for 3 seconds
(Zeiss) optical dividing head indexing, indexing shaft completed a
one-time processing, loading and high precision,
the error is less than or equal to 3%.
5.The capsule filler machines use the imported SIL silicone rubber
sealing ring to block the powder into the bearing, which
effectively solves the problem of the card machine that the powder
enters the bearing.
| Production capacity | 72000 pcs/h |
| Net weight of machine | 1100Kg |
| Overall size of machine | 900×870×1950 |
| Power | 380/220V 50Hz |
| Total power | 5.5KW |
| No.of segment bores | 9 |
| Vacuum | 40m3/h-0.04-0.08Mpa |
| Dust collector | 24.5Kpa 210m3/h |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
| Weight | 1100Kg |
| Packing size | 1490×1260×2150mm |
6.equipped with on-line air pressure die cleaning system, the upper
and lower dies are clean and without dust, improve the sowing
effect.
The capsule filler machinery is precision mold concentricity, zero
deviation, ensure that the capsule is not wiping, no damage.
7.Automatic rejection device, improve the charging efficiency ,the
capsule filling equipment is suitable to pharmacy and health care
food manufacture.
8.The control of capsule filler machine appliance adopts the world
famous brand, modularized setup, convenient inspection and
maintenance, SIEMENS human machine interface, real-time counting,
and can print the equipment according to customer needs, print
production date, batch number, code, etc.
8.Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and
each machine is customized to satisfy customer's need well.
9.What's your payment way?
T/T by our bank account directly, or L/C, or by the West Union, or
in cash.
10.Rotary of capsule filling machine design to obtain a patent for
utility model, the sealing ring using imported SIL silicone rubber,
effectively prevent powder into the internal turntable, good
sealing performance, no dust overflow
pollution
