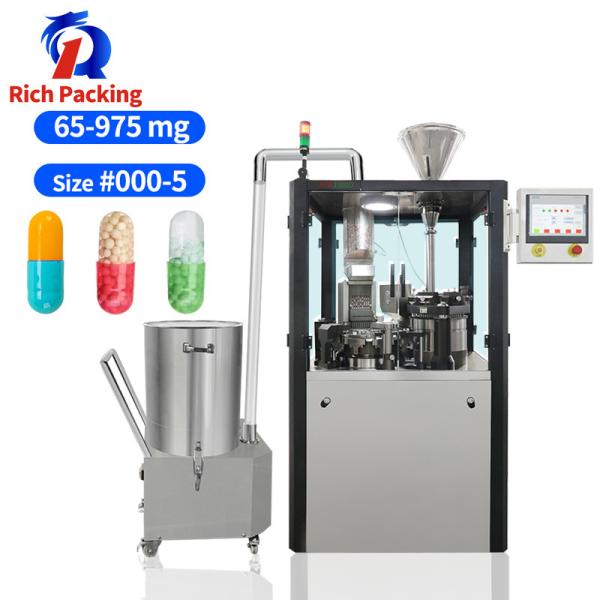

NJP 1500D Capsule Filling Machine For Automatic Fill Size 000 00 0 1 2 3 4 5

Capsules Fills Machine Powder 1500D is easy to clean, zero dirt is one of its strengths, it is very environmentally friendly and economical. This machinery can work efficiently from morning to night under the conditions of continuous machine, and it can run with 0 noise. And all kinds of Fills capsules rods are easy to change and have 0 deviation to ensure the quality of the capsules filled without scratches or damage.

The adjustment working process and methods of the gap between the dosing disc and the sealing ring of the hard capsule Fills machine automatic. The gaps between the dosing disk and the sealing ring of the automatic capsule Fills machine are 0.03 to 0.08mm. When the powder pellets are large, the interval can be adjusted to be larger. If the gaps are too small, the resistance between the dosing disk and the sealing ring would increase. During the operation of the capsule Fills machine fully automatic, it is so necessary to adjust the gaps when too much powder leakage or excessive resistance be found.

Capsules Fills Machine Powder adjustment methods: loosen and remove the 5 screws on the baffle, loosen the set screw and set nut, turn the 5 adjusting bolts evenly and carefully in turn to adjust the heights of sealing ring, check it with a feeler gauge For gaps, check three to five measuring points. After the whole inspection is completed, first tighten the set screw, install the baffle plate with the screw and fix it.

Guangdong Rich Packing Machinery Co., Ltd.

-pharmaceutical packaging equipment manufacturer

-with 29 years of overseas debugging and training experience

Our machines sell well in more than 100 countries and regions, and have provided high-quality products and technical services for more than 3,000 customers such as GSK UCB DuPont and etc..

Main products including capsule filling machine, tablet press machine, electronic counting machine, blister packing machine, and cartoning box packing machine, etc.

Five Production Facilities

Equipped with 102 sets advanced machining centers

with annual production capacity of more than 3,700 sets.

All-Round Support such as design, testing, and selection.

Completes more than 2,000 customized business solutions every year.

Own freight forwarders in Hong Kong, Shanghai and Shenzhen ports

DDP/DDU services

ISO, CE, SGS and other certifications.

High Praise from 4,000+ Customers

1 Year Free Wearing Parts & 3 Years Free Core Electric Component

We always believe that to achieve customers is to achieve ourselves.

Only by creating value for customers can we have the value of existence.

Guangdong Rich Packing sincerely welcomes every overseas friend to negotiate and provide us with a valuable cooperation opportunity.
